Tutorial

NLPModelsIpopt is a thin IPOPT wrapper for NLPModels. In this tutorial we show examples of problems created with NLPModels and solved with Ipopt.

Simple problems

Calling Ipopt is simple:

NLPModelsIpopt.ipopt — Function
output = ipopt(nlp; kwargs...)

Solves the NLPModel problem nlp using IpOpt.

For advanced usage, first define a IpoptSolver to preallocate the memory used in the algorithm, and then call solve!: solver = IpoptSolver(nlp) solve!(solver, nlp; kwargs...) solve!(solver, nlp, stats; kwargs...)

Optional keyword arguments

  • x0: a vector of size nlp.meta.nvar to specify an initial primal guess
  • y0: a vector of size nlp.meta.ncon to specify an initial dual guess for the general constraints
  • zL: a vector of size nlp.meta.nvar to specify initial multipliers for the lower bound constraints
  • zU: a vector of size nlp.meta.nvar to specify initial multipliers for the upper bound constraints

All other keyword arguments will be passed to Ipopt as an option. See https://coin-or.github.io/Ipopt/OPTIONS.html for the list of options accepted.

Output

The returned value is a GenericExecutionStats, see SolverCore.jl.

Examples

using NLPModelsIpopt, ADNLPModels
nlp = ADNLPModel(x -> sum(x.^2), ones(3));
stats = ipopt(nlp, print_level = 0)
using NLPModelsIpopt, ADNLPModels
nlp = ADNLPModel(x -> sum(x.^2), ones(3));
solver = IpoptSolver(nlp);
stats = solve!(solver, nlp, print_level = 0)
source
ipopt(nls::AbstractNLSModel; kwargs...)

Solve the least-squares problem nls using IPOPT by moving the nonlinear residual to the constraints.

Arguments

  • nls::AbstractNLSModel: The least-squares problem to solve.

For advanced usage, first define an IpoptSolver to preallocate the memory used in the algorithm, and then call solve!: solver = IpoptSolver(nls) solve!(solver, nls; kwargs...)

Examples

using NLPModelsIpopt, ADNLPModels
nls = ADNLSModel(x -> [x[1] - 1, x[2] - 2], [0.0, 0.0], 2)
stats = ipopt(nls, print_level = 0)
source

Let's create an NLPModel for the Rosenbrock function

\[f(x) = (x_1 - 1)^2 + 100 (x_2 - x_1^2)^2\]

and solve it with Ipopt:

using ADNLPModels, NLPModels, NLPModelsIpopt

nlp = ADNLPModel(x -> (x[1] - 1)^2 + 100 * (x[2] - x[1]^2)^2, [-1.2; 1.0])
stats = ipopt(nlp)
print(stats)

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

This is Ipopt version 3.14.17, running with linear solver MUMPS 5.8.0.

Number of nonzeros in equality constraint Jacobian...:        0
Number of nonzeros in inequality constraint Jacobian.:        0
Number of nonzeros in Lagrangian Hessian.............:        3

Total number of variables............................:        2
                     variables with only lower bounds:        0
                variables with lower and upper bounds:        0
                     variables with only upper bounds:        0
Total number of equality constraints.................:        0
Total number of inequality constraints...............:        0
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:        0

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  2.4200000e+01 0.00e+00 1.00e+02  -1.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  4.7318843e+00 0.00e+00 2.15e+00  -1.0 3.81e-01    -  1.00e+00 1.00e+00f  1
   2  4.0873987e+00 0.00e+00 1.20e+01  -1.0 4.56e+00    -  1.00e+00 1.25e-01f  4
   3  3.2286726e+00 0.00e+00 4.94e+00  -1.0 2.21e-01    -  1.00e+00 1.00e+00f  1
   4  3.2138981e+00 0.00e+00 1.02e+01  -1.0 4.82e-01    -  1.00e+00 1.00e+00f  1
   5  1.9425854e+00 0.00e+00 1.62e+00  -1.0 6.70e-02    -  1.00e+00 1.00e+00f  1
   6  1.6001937e+00 0.00e+00 3.44e+00  -1.0 7.35e-01    -  1.00e+00 2.50e-01f  3
   7  1.1783896e+00 0.00e+00 1.92e+00  -1.0 1.44e-01    -  1.00e+00 1.00e+00f  1
   8  9.2241158e-01 0.00e+00 4.00e+00  -1.0 2.08e-01    -  1.00e+00 1.00e+00f  1
   9  5.9748862e-01 0.00e+00 7.36e-01  -1.0 8.91e-02    -  1.00e+00 1.00e+00f  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
  10  4.5262510e-01 0.00e+00 2.42e+00  -1.7 2.97e-01    -  1.00e+00 5.00e-01f  2
  11  2.8076244e-01 0.00e+00 9.25e-01  -1.7 1.02e-01    -  1.00e+00 1.00e+00f  1
  12  2.1139340e-01 0.00e+00 3.34e+00  -1.7 1.77e-01    -  1.00e+00 1.00e+00f  1
  13  8.9019501e-02 0.00e+00 2.25e-01  -1.7 9.45e-02    -  1.00e+00 1.00e+00f  1
  14  5.1535405e-02 0.00e+00 1.49e+00  -1.7 2.84e-01    -  1.00e+00 5.00e-01f  2
  15  1.9992778e-02 0.00e+00 4.64e-01  -1.7 1.09e-01    -  1.00e+00 1.00e+00f  1
  16  7.1692436e-03 0.00e+00 1.03e+00  -1.7 1.39e-01    -  1.00e+00 1.00e+00f  1
  17  1.0696137e-03 0.00e+00 9.09e-02  -1.7 5.50e-02    -  1.00e+00 1.00e+00f  1
  18  7.7768464e-05 0.00e+00 1.44e-01  -2.5 5.53e-02    -  1.00e+00 1.00e+00f  1
  19  2.8246695e-07 0.00e+00 1.50e-03  -2.5 7.31e-03    -  1.00e+00 1.00e+00f  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
  20  8.5170750e-12 0.00e+00 4.90e-05  -5.7 1.05e-03    -  1.00e+00 1.00e+00f  1
  21  3.7439756e-21 0.00e+00 1.73e-10  -5.7 2.49e-06    -  1.00e+00 1.00e+00f  1

Number of Iterations....: 21

                                   (scaled)                 (unscaled)
Objective...............:   1.7365378678754519e-21    3.7439756431394737e-21
Dual infeasibility......:   1.7312156654298279e-10    3.7325009746667082e-10
Constraint violation....:   0.0000000000000000e+00    0.0000000000000000e+00
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   0.0000000000000000e+00    0.0000000000000000e+00
Overall NLP error.......:   1.7312156654298279e-10    3.7325009746667082e-10


Number of objective function evaluations             = 45
Number of objective gradient evaluations             = 22
Number of equality constraint evaluations            = 0
Number of inequality constraint evaluations          = 0
Number of equality constraint Jacobian evaluations   = 0
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations             = 21
Total seconds in IPOPT                               = 4.148

EXIT: Optimal Solution Found.
Generic Execution stats
  status: first-order stationary
  objective value: 3.743975643139474e-21
  primal feasibility: 0.0
  dual feasibility: 3.732500974666708e-10
  solution: [0.9999999999400667  0.9999999998789006]
  iterations: 21
  elapsed time: 4.148
  solver specific:
    real_time: 4.14860987663269
    internal_msg: :Solve_Succeeded

For comparison, we present the same problem and output using JuMP:

using JuMP, Ipopt

model = Model(Ipopt.Optimizer)
x0 = [-1.2; 1.0]
@variable(model, x[i=1:2], start=x0[i])
@NLobjective(model, Min, (x[1] - 1)^2 + 100 * (x[2] - x[1]^2)^2)
optimize!(model)
This is Ipopt version 3.14.17, running with linear solver MUMPS 5.8.0.

Number of nonzeros in equality constraint Jacobian...:        0
Number of nonzeros in inequality constraint Jacobian.:        0
Number of nonzeros in Lagrangian Hessian.............:        3

Total number of variables............................:        2
                     variables with only lower bounds:        0
                variables with lower and upper bounds:        0
                     variables with only upper bounds:        0
Total number of equality constraints.................:        0
Total number of inequality constraints...............:        0
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:        0

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  2.4200000e+01 0.00e+00 1.00e+02  -1.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  4.7318843e+00 0.00e+00 2.15e+00  -1.0 3.81e-01    -  1.00e+00 1.00e+00f  1
   2  4.0873987e+00 0.00e+00 1.20e+01  -1.0 4.56e+00    -  1.00e+00 1.25e-01f  4
   3  3.2286726e+00 0.00e+00 4.94e+00  -1.0 2.21e-01    -  1.00e+00 1.00e+00f  1
   4  3.2138981e+00 0.00e+00 1.02e+01  -1.0 4.82e-01    -  1.00e+00 1.00e+00f  1
   5  1.9425854e+00 0.00e+00 1.62e+00  -1.0 6.70e-02    -  1.00e+00 1.00e+00f  1
   6  1.6001937e+00 0.00e+00 3.44e+00  -1.0 7.35e-01    -  1.00e+00 2.50e-01f  3
   7  1.1783896e+00 0.00e+00 1.92e+00  -1.0 1.44e-01    -  1.00e+00 1.00e+00f  1
   8  9.2241158e-01 0.00e+00 4.00e+00  -1.0 2.08e-01    -  1.00e+00 1.00e+00f  1
   9  5.9748862e-01 0.00e+00 7.36e-01  -1.0 8.91e-02    -  1.00e+00 1.00e+00f  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
  10  4.5262510e-01 0.00e+00 2.42e+00  -1.7 2.97e-01    -  1.00e+00 5.00e-01f  2
  11  2.8076244e-01 0.00e+00 9.25e-01  -1.7 1.02e-01    -  1.00e+00 1.00e+00f  1
  12  2.1139340e-01 0.00e+00 3.34e+00  -1.7 1.77e-01    -  1.00e+00 1.00e+00f  1
  13  8.9019501e-02 0.00e+00 2.25e-01  -1.7 9.45e-02    -  1.00e+00 1.00e+00f  1
  14  5.1535405e-02 0.00e+00 1.49e+00  -1.7 2.84e-01    -  1.00e+00 5.00e-01f  2
  15  1.9992778e-02 0.00e+00 4.64e-01  -1.7 1.09e-01    -  1.00e+00 1.00e+00f  1
  16  7.1692436e-03 0.00e+00 1.03e+00  -1.7 1.39e-01    -  1.00e+00 1.00e+00f  1
  17  1.0696137e-03 0.00e+00 9.09e-02  -1.7 5.50e-02    -  1.00e+00 1.00e+00f  1
  18  7.7768464e-05 0.00e+00 1.44e-01  -2.5 5.53e-02    -  1.00e+00 1.00e+00f  1
  19  2.8246695e-07 0.00e+00 1.50e-03  -2.5 7.31e-03    -  1.00e+00 1.00e+00f  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
  20  8.5170750e-12 0.00e+00 4.90e-05  -5.7 1.05e-03    -  1.00e+00 1.00e+00f  1
  21  3.7439756e-21 0.00e+00 1.73e-10  -5.7 2.49e-06    -  1.00e+00 1.00e+00f  1

Number of Iterations....: 21

                                   (scaled)                 (unscaled)
Objective...............:   1.7365378678754519e-21    3.7439756431394737e-21
Dual infeasibility......:   1.7312156654298279e-10    3.7325009746667082e-10
Constraint violation....:   0.0000000000000000e+00    0.0000000000000000e+00
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   0.0000000000000000e+00    0.0000000000000000e+00
Overall NLP error.......:   1.7312156654298279e-10    3.7325009746667082e-10


Number of objective function evaluations             = 45
Number of objective gradient evaluations             = 22
Number of equality constraint evaluations            = 0
Number of inequality constraint evaluations          = 0
Number of equality constraint Jacobian evaluations   = 0
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations             = 21
Total seconds in IPOPT                               = 4.219

EXIT: Optimal Solution Found.

Here is an example with a constrained problem:

n = 10
x0 = ones(n)
x0[1:2:end] .= -1.2
lcon = ucon = zeros(n-2)
nlp = ADNLPModel(x -> sum((x[i] - 1)^2 + 100 * (x[i+1] - x[i]^2)^2 for i = 1:n-1), x0,
                 x -> [3 * x[k+1]^3 + 2 * x[k+2] - 5 + sin(x[k+1] - x[k+2]) * sin(x[k+1] + x[k+2]) +
                       4 * x[k+1] - x[k] * exp(x[k] - x[k+1]) - 3 for k = 1:n-2],
                 lcon, ucon)
stats = ipopt(nlp, print_level=0)
print(stats)
Generic Execution stats
  status: first-order stationary
  objective value: 6.232458632437464
  primal feasibility: 8.354650304909228e-12
  dual feasibility: 6.315958866407726e-9
  solution: [-0.9505563573613093  0.9139008176388945  0.9890905176644905  0.9985592422681151 ⋯ 0.999999930070643]
  multipliers: [4.1358568305002255  -1.8764949037033418  -0.06556333356358675  -0.021931863018312875 ⋯ -7.376592164341975e-6]
  iterations: 6
  elapsed time: 6.304
  solver specific:
    real_time: 6.304074048995972
    internal_msg: :Solve_Succeeded

Return value

The return value of ipopt is a GenericExecutionStats instance from SolverCore. It contains basic information on the solution returned by the solver. In addition to the built-in fields of GenericExecutionStats, we store the detailed Ipopt output message inside solver_specific[:internal_msg].

Here is an example using the constrained problem solve:

stats.solver_specific[:internal_msg]
:Solve_Succeeded

Monitoring optimization with callbacks

You can monitor the optimization process using a callback function. The callback allows you to access the current iterate and constraint violations at each iteration, which is useful for custom stopping criteria, logging, or real-time analysis.

Callback parameters

The callback function receives the following parameters from Ipopt:

  • alg_mod: algorithm mode (0 = regular, 1 = restoration phase)
  • iter_count: current iteration number
  • obj_value: current objective function value
  • inf_pr: primal infeasibility (constraint violation)
  • inf_du: dual infeasibility
  • mu: complementarity measure
  • d_norm: norm of the primal step
  • regularization_size: size of regularization
  • alpha_du: step size for dual variables
  • alpha_pr: step size for primal variables
  • ls_trials: number of line search trials

Example usage

Here's a complete example showing how to use callbacks to monitor the optimization:

using ADNLPModels, NLPModelsIpopt

function my_callback(alg_mod, iter_count, obj_value, inf_pr, inf_du, mu, d_norm, regularization_size, alpha_du, alpha_pr, ls_trials, args...)
    # Log iteration information (these are the standard parameters passed by Ipopt)
    println("Iteration $iter_count:")
    println("  Objective value = ", obj_value)
    println("  Primal infeasibility = ", inf_pr)
    println("  Dual infeasibility = ", inf_du)
    println("  Complementarity = ", mu)

    # Return true to continue, false to stop
    return iter_count < 5  # Stop after 5 iterations for this example
end
nlp = ADNLPModel(x -> (x[1] - 1)^2 + 100 * (x[2] - x[1]^2)^2, [-1.2; 1.0])
stats = ipopt(nlp, callback = my_callback, print_level = 0)
"Execution stats: user-requested stop"

You can also use callbacks with the advanced solver interface:

# Advanced usage with IpoptSolver
solver = IpoptSolver(nlp)
stats = solve!(solver, nlp, callback = my_callback, print_level = 0)
"Execution stats: user-requested stop"

Custom stopping criteria

Callbacks are particularly useful for implementing custom stopping criteria:

function custom_stopping_callback(alg_mod, iter_count, obj_value, inf_pr, inf_du, mu, d_norm, regularization_size, alpha_du, alpha_pr, ls_trials, args...)
    # Custom stopping criterion: stop if objective gets close to optimum
    if obj_value < 0.01
        println("Custom stopping criterion met at iteration $iter_count")
        return false  # Stop optimization
    end

    return true  # Continue optimization
end

nlp = ADNLPModel(x -> (x[1] - 1)^2 + 100 * (x[2] - x[1]^2)^2, [-1.2; 1.0])
stats = ipopt(nlp, callback = custom_stopping_callback, print_level = 0)
"Execution stats: user-requested stop"

Manual input

In this section, we work through an example where we specify the problem and its derivatives manually. For this, we need to implement the following NLPModel API methods:

  • obj(nlp, x): evaluate the objective value at x;
  • grad!(nlp, x, g): evaluate the objective gradient at x;
  • cons!(nlp, x, c): evaluate the vector of constraints, if any;
  • jac_structure!(nlp, rows, cols): fill rows and cols with the spartity structure of the Jacobian, if the problem is constrained;
  • jac_coord!(nlp, x, vals): fill vals with the Jacobian values corresponding to the sparsity structure returned by jac_structure!();
  • hess_structure!(nlp, rows, cols): fill rows and cols with the spartity structure of the lower triangle of the Hessian of the Lagrangian;
  • hess_coord!(nlp, x, y, vals; obj_weight=1.0): fill vals with the values of the Hessian of the Lagrangian corresponding to the sparsity structure returned by hess_structure!(), where obj_weight is the weight assigned to the objective, and y is the vector of multipliers.

The model that we implement is a logistic regression model. We consider the model $h(\beta; x) = (1 + e^{-\beta^Tx})^{-1}$, and the loss function

\[\ell(\beta) = -\sum_{i = 1}^m y_i \ln h(\beta; x_i) + (1 - y_i) \ln(1 - h(\beta; x_i))\]

with regularization $\lambda \|\beta\|^2 / 2$.

using DataFrames, LinearAlgebra, NLPModels, NLPModelsIpopt, Random

mutable struct LogisticRegression <: AbstractNLPModel{Float64, Vector{Float64}}
  X :: Matrix
  y :: Vector
  λ :: Real
  meta :: NLPModelMeta{Float64, Vector{Float64}} # required by AbstractNLPModel
  counters :: Counters # required by AbstractNLPModel
end

function LogisticRegression(X, y, λ = 0.0)
  m, n = size(X)
  meta = NLPModelMeta(n, name="LogisticRegression", nnzh=div(n * (n+1), 2) + n) # nnzh is the length of the coordinates vectors
  return LogisticRegression(X, y, λ, meta, Counters())
end

function NLPModels.obj(nlp :: LogisticRegression, β::AbstractVector)
  hβ = 1 ./ (1 .+ exp.(-nlp.X * β))
  return -sum(nlp.y .* log.(hβ .+ 1e-8) .+ (1 .- nlp.y) .* log.(1 .- hβ .+ 1e-8)) + nlp.λ * dot(β, β) / 2
end

function NLPModels.grad!(nlp :: LogisticRegression, β::AbstractVector, g::AbstractVector)
  hβ = 1 ./ (1 .+ exp.(-nlp.X * β))
  g .= nlp.X' * (hβ .- nlp.y) + nlp.λ * β
end

function NLPModels.hess_structure!(nlp :: LogisticRegression, rows :: AbstractVector{<:Integer}, cols :: AbstractVector{<:Integer})
  n = nlp.meta.nvar
  I = ((i,j) for i = 1:n, j = 1:n if i ≥ j)
  rows[1 : nlp.meta.nnzh] .= [getindex.(I, 1); 1:n]
  cols[1 : nlp.meta.nnzh] .= [getindex.(I, 2); 1:n]
  return rows, cols
end

function NLPModels.hess_coord!(nlp :: LogisticRegression, β::AbstractVector, vals::AbstractVector; obj_weight=1.0, y=Float64[])
  n, m = nlp.meta.nvar, length(nlp.y)
  hβ = 1 ./ (1 .+ exp.(-nlp.X * β))
  fill!(vals, 0.0)
  for k = 1:m
    hk = hβ[k]
    p = 1
    for j = 1:n, i = j:n
      vals[p] += obj_weight * hk * (1 - hk) * nlp.X[k,i] * nlp.X[k,j]
      p += 1
    end
  end
  vals[nlp.meta.nnzh+1:end] .= nlp.λ * obj_weight
  return vals
end

Random.seed!(0)

# Training set
m = 1000
df = DataFrame(:age => rand(18:60, m), :salary => rand(40:180, m) * 1000)
df.buy = (df.age .> 40 .+ randn(m) * 5) .| (df.salary .> 120_000 .+ randn(m) * 10_000)

X = [ones(m) df.age df.age.^2 df.salary df.salary.^2 df.age .* df.salary]
y = df.buy

λ = 1.0e-2
nlp = LogisticRegression(X, y, λ)
stats = ipopt(nlp, print_level=0)
β = stats.solution

# Test set - same generation method
m = 100
df = DataFrame(:age => rand(18:60, m), :salary => rand(40:180, m) * 1000)
df.buy = (df.age .> 40 .+ randn(m) * 5) .| (df.salary .> 120_000 .+ randn(m) * 10_000)

X = [ones(m) df.age df.age.^2 df.salary df.salary.^2 df.age .* df.salary]
hβ = 1 ./ (1 .+ exp.(-X * β))
ypred = hβ .> 0.5

acc = count(df.buy .== ypred) / m
println("acc = $acc")
acc = 0.91

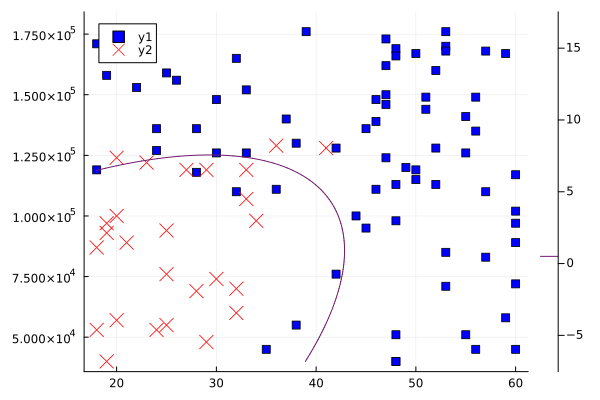

using Plots
gr()

f(a, b) = dot(β, [1.0; a; a^2; b; b^2; a * b])
P = findall(df.buy .== true)
scatter(df.age[P], df.salary[P], c=:blue, m=:square)
P = findall(df.buy .== false)
scatter!(df.age[P], df.salary[P], c=:red, m=:xcross, ms=7)
contour!(range(18, 60, step=0.1), range(40_000, 180_000, step=1.0), f, levels=[0.5])
